Bomba Wiper 2 CV - 230/400V trifásica para hidromasaje y spa de Espa
Espa | SKU:
203177
374,88 €
Unit price
/
Unavailable
Tax included, shipping and discounts calculated at checkout.

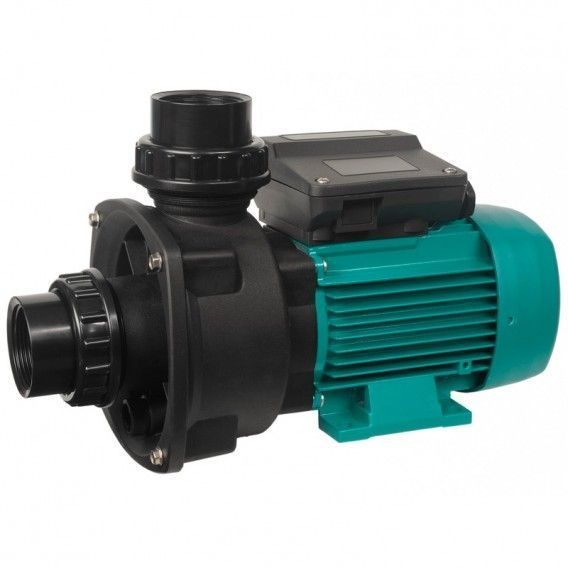

The Wiper Pump 2 CV - 230/400 V three-phase is a single-stage centrifugal pump designed for the recirculation of water in spas, removable pools and hydromassage.
Bomba Wiper 2 CV - 230/400V trifásica para hidromasaje y spa de Espa is backordered and will ship as soon as it is back in stock.
Transit time 1 - 3 days
Description
Description
The Wiper Pump 2 CV - 230/400 V three-phase is a single-stage centrifugal pump designed for the recirculation of water in spas, removable pools and hydromassage.
Designed with a compact and robust design and purge plug.
Characteristic
The Espa Wiper Pump is made with the following materials:
- Pump body and impeller made of technopolymer.
- The motor shaft is made of 100% AISI 420 stainless steel.
- The motor housing is made of aluminum.
- The special mechanical seal is made of graphite and soapstone.
- Gaskets made of NBR.
The Espa Wiper Pump motor is made with the following materials:
- It has an IP 55 protection and external ventilation.
- 1 x 230V single-phase motor incorporates thermoamperometric protector and its corresponding capacitor.
- Electrophoresis painting, ensuring the motor with a great resistance to corrosion
The Espa Wiper Pump has one type of connection:
- 2¼" threaded suction and discharge and supplied with 50 mm threaded unions (Wiper 0) and 2¾" supplied with 63 mm unions to be glued (Wiper 3).
Technical characteristics
| 3-400V(T) | I(A) |
P1(kW) |
P2 |
C (µF) |
l/min | fifty | 100 | 200 | 300 | 400 | 500 | 600 | 900 | |
| Reference | 3-230V | 3-400V | 3-400V | kW/hp | m3/h | 3.0 | 6.0 | 12 | 18 | 24 | 30 | 36 | 54 | |
| 203177 | 6.6 | 3.8 | 1.8 | 1.1/1.5 | 40 | mca | 14.8 | 14.5 | 13.9 | 12.9 | 11.1 | 9.1 | 6.8 | - |
Dimensions
 |
| Model | A | B. | C | D | AND | F | G | H | Yo | J | K | L | M | kg |
| Wiper3 200 | 130 | 298.7 | 230 | 160 | 120 | 108 | 63 | 162 | 108 | 124 | 191 | 9 | 29 | 17 |
Performance curve at 2900 rpm.
 |
