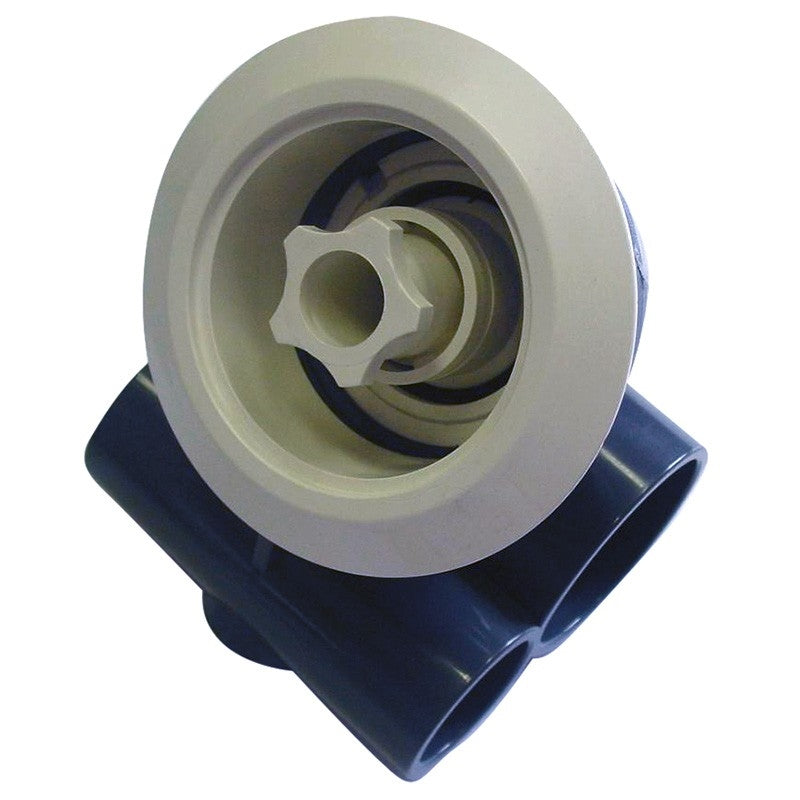

2½" adjustable jet for hydromassage by AstralPool

The new 2½" adjustable jet for hydromassage from AstralPool has a regulation of the proportion of water/outlet air, it has a water inlet diameter of 50 mm and an air inlet diameter of 32 mm.

The combination of pressurized water jets with air bubbles creating an intense and relaxing hydromassage effect.

It has a flow rate of 4 m³/h and a pressure of 0.8 bar.

Facility

To carry out a correct and simple installation of the AstralPool 2" threaded hydromassage jet, we must follow the following simple and quick steps.

1. Mark a point approximately 200 mm below the normal water level on the Spa wall (#1).
2. Once the point in the center has been made, we previously drilled with a drill and then with a Ø 60-75 cup milling cutter so that it passes through the nozzle body. (No. 2).
3. We glue the cap supplied to the body of the Jet (nº 3).
4. If you want a greater acceleration of the water at its outlet, you can place one of the 3 bushings supplied (nº 4) inside the choke.
5. Place the Jet body on the back of the Spa wall and thread the nozzle on the front by placing a flat gasket on both sides of the Spa wall. (no. 5 and 6).
