Filtro de arena soplado 7.000 l/h Ø430 mm Millenium
AstralPool | SKU:
22499
322,32 €
Unit price
/
Unavailable
Tax included, shipping and discounts calculated at checkout.
9 m³
Filtro de arena soplado 7.000 l/h Ø430 mm Millenium is backordered and will ship as soon as it is back in stock.
Transit time 1 - 3 days
Description
Description
Other product variants are available:
This product has different models. You can select another model by clicking on any of the references in the table below:
| Reference | Model |
| 35321 | Astralpool Millenium Ø 380 mm blown sand filter |
| 22497 | Astralpool Millenium Ø 430 mm blown sand filter |
| 22499 | Astralpool Millenium Ø 480 mm blown sand filter |
| 22501 | Astralpool Millenium Ø 560 mm blown sand filter |
| 28254 | Astralpool Millenium Ø 660 mm blown sand filter |

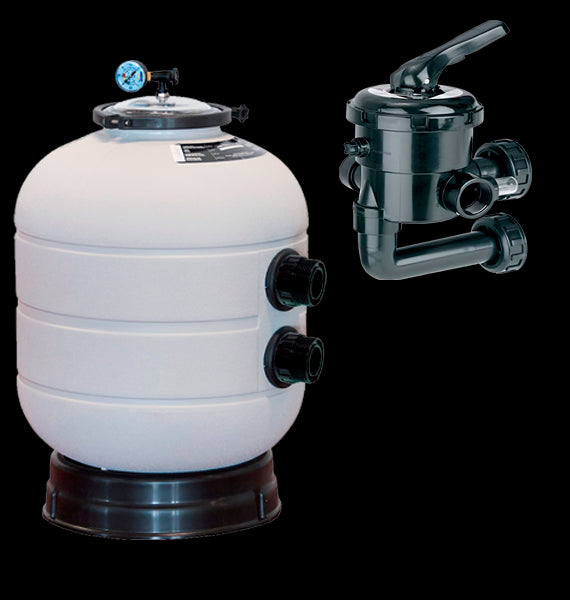

Filter made of plastic material in one piece and without joints by means of the blowing process. The opening of the filter cover is carried out by means of the strap system. It is equipped with a pressure gauge and an integrated manual air and water purge. Ivory color. Selector valve included. Maximum working pressure of 2 Kg/cm². The volume is 0.26 m³.
Dimensions and technical characteristics
| Code | 35321 | 22497 | 22499 | 22501 | 28254 | |
| Ø D (mm) | 380 | 430 | 480 | 560 | 660 | |
| H(mm) | 615 | 655 | 682 | 770 | 900 | |
| Hmm) | 225 | 265 | 292 | 380 | 510 | |
| N(mm) | 100 | 140 | 167 | 255 | 385 | |
| connections | 1½" | 1½" | 1½" | 1½" | 1½" | |
| Flow (m³/h) | 5.5 | 7 | 9 | 12 | 17 | |
| Pool m³ approx. | up to 40 | 40-50 | 50-75 | 75-100 | 140 | |
| Max working pressure (kg/cm²) | 2.5 | 2.5 | 2.5 | 2.0 | 2.0 | |
| Sand load (kg) | 40 | 60 | 85 | 135 | 250 | |
| Glass load (kg) | Grade 1 (57011) | 28 | 42 | 60 | 95 | 175 |
| Grade 3 (57013) | 8 | eleven | 16 | 25 | 47 | |
| Net weight / kg) | 10 | 12 | fifteen | 17.5 | 28 | |
| Packing volume (m³) | 0.13 | 0.13 | 0.18 | 0.26 | 0.42 |
