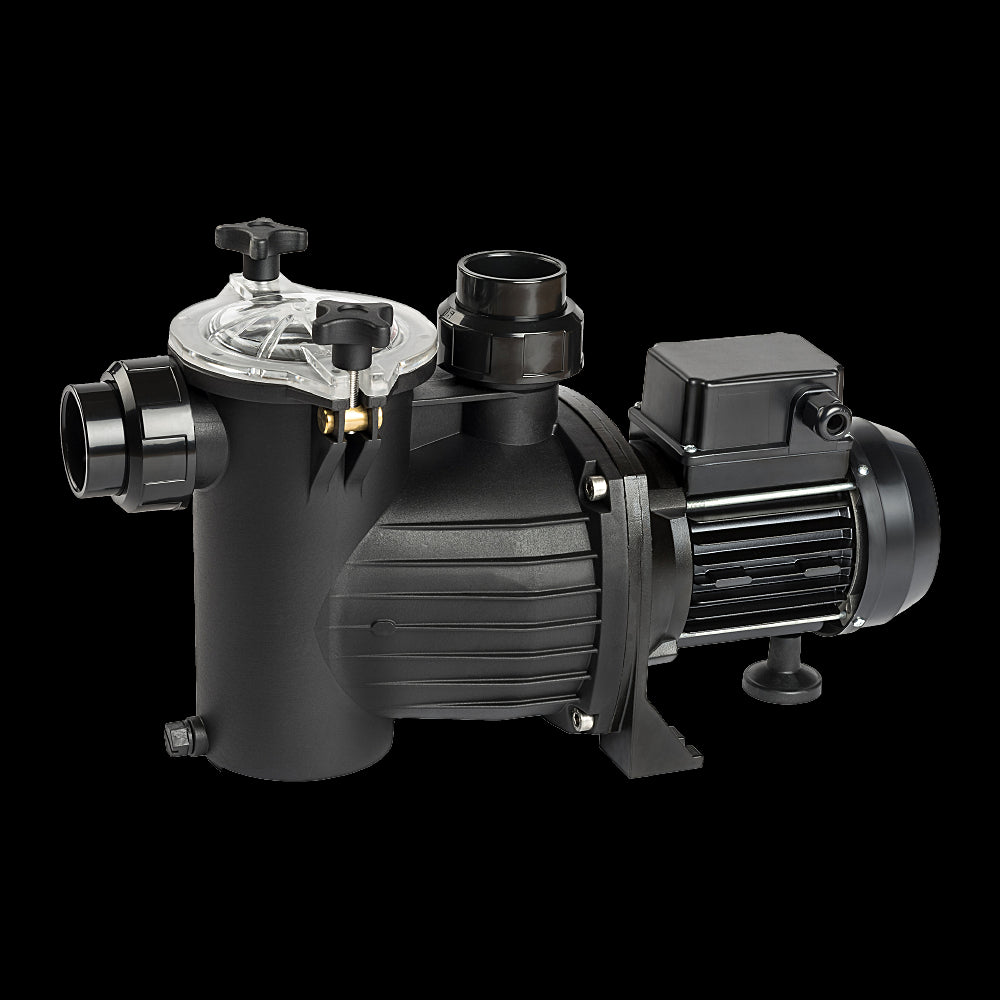

Optimum Pump 0,25 AV

Optima Pumps

Circulation/filtration pumps for inground pools, designed and manufactured to the highest standards of precision and quality for safe, reliable operation and long life. Plus, with new built-in technology, they are whisper quiet.

• Self-priming pump with built-in pre-filter and excellent performance.
• Pre-filter with transparent polycarbonate cover, locking with handles.
• Large pre-filter basket.
• TWO CONNECTION POSSIBILITIES:
  • 1 ½" female thread connection
  • Connection for ø 50 PVC pipe to be glued (quick couplings for gluing are supplied).
• Cataphoresis painting.
• Aluminum support base
• AISI-304 stainless steel screws
• Asynchronous motor at 2900 rpm (3450 rpm @ 60 Hz)
• Maintenance-free lubricated bearings.
• Class F insulation, Grade IP-55.

Other product variants are available:

This same pump is available with other power ratings. You can select another model by clicking on any of the references in the table below:

Reference	Model	M³/H	I/O	Optima pump performance curve
36106002	Optima pump 0,25 HP Mono	4	1 ½"
36106012	Optima Pump 0,33 HP Mono	5,5	1 ½"
36106022	Optima 0,5 HP Mono pump	7	1 ½"
36106032	Optima Pump 0,75 HP Mono	10	1 ½"
36106033	Optima Pump 0,75 HP Three Phase	10	1 ½"
36106042	Optima 1 HP Mono pump	13	1 ½"
36106043	Optima 1 HP Three-phase pump	13	1 ½"
36106052	Optima 1,5 HP Mono pump	14,5	1 ½"
36106053	Optima 1,5 HP Three-phase pump	14,5	1 ½"

OPTIMA PUMP DIMENSIONS
	Model	A	B	C	D	E	F	G	H	I	J	DNA DNI	Net Kg.	Gross Kg.
	OPTIMA 25	191	205	470	285	95	233	140	180	265	197	1½	9,8	10,8
	OPTIMA 33	191	205	470	285	95	233	140	180	265	197	1½	9,8	10,8
	OPTIMA 50	191	205	470	285	95	233	140	180	265	197	1½	9,8	10,8
	OPTIMA 75	191	205	470	285	95	233	140	180	265	197	1½	9,8	10,8
	OPTIMA 100	191	205	470	285	95	233	140	180	265	197	1½	9,8	10,8

OPTIMA PUMPS EXPLODED VIEW

1 -Knob 2 - Pre-filter cover 3 - Pre-filter seal 4 - Pre-filter basket 5 - Pump body 6 - Drain plug 7 - Drain plug seal 8 - Diffuser seal 9 - Diffuser 10 - Turbine 11 - Mechanical seal 12 - Pump body seal 13 - Seal disc 14 - Body fixing screw 15 - Knob holder cylinder 16 - Front seal IP-55 17 - Fittings + gaskets kit

18 - Pump support 19 - Body fixing nut 20 - Front bearing 21 - Rotor with shaft 22 - Rear bearing 23 - Motor stator + housing 24 - Terminal box 25 - Terminal box cover screw 26 - Terminal box cover 27 - Capacitor 28 - Terminal box seal 29 - Motor rear cover 31 - Fan 32 - Fan cover 33 - Washer - Lashing washer 34 - Motor stud bolt 35 - Fan cover screw
