Electorilisis salina Hidrolife Sal 33 de Sugar.Valley

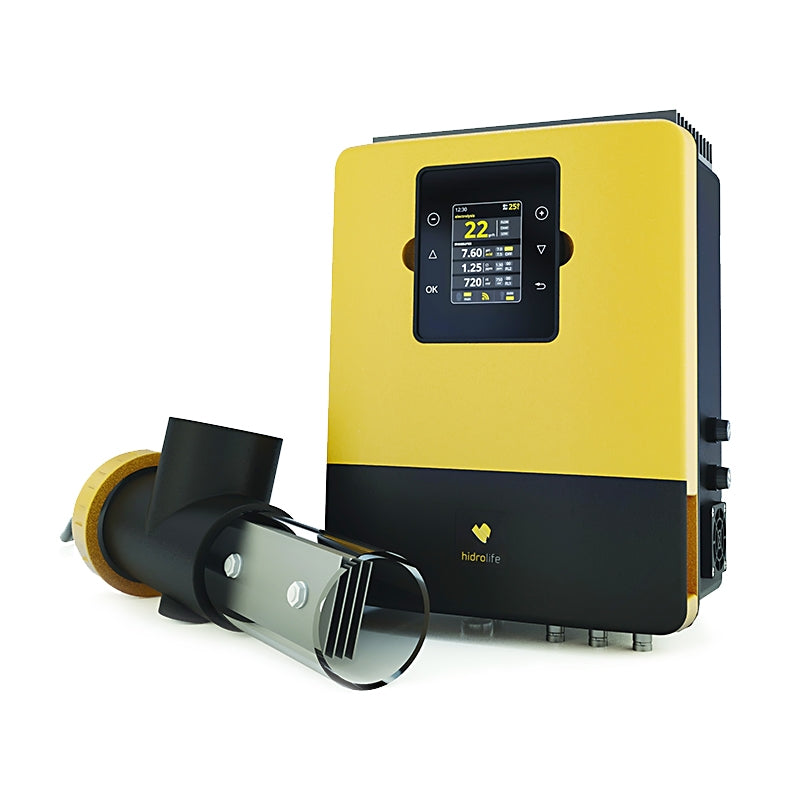

The new Hidrolife Sal 33 salt electrolysis equipment for both private and public pools is an equipment that generates chlorine through the common salt dissolved in the water of your pool, it will work whether there is enough salt in the water or if there is not. enough salt in the water.

With the new salt electrolysis equipment you will avoid handling any type of chemical product and simplify maintenance.

You will have a completely healthier and more pleasant bathroom

The Hidrolife salt electrolysis equipment has several advantages :

1. It is an economic equipment and easy to install in any type of pool.
2. It will completely eliminate the consumption of chlorine in your pool.
3. It will have no problem being used with saline water.
4. Avoid any type of itching, irritation in the eyes or skin.
5. Protects tissues.
6. Promotes tan.
7. It needs the minimum maintenance.

Characteristic.

• Removable display.
• Access menus with security password.
• Security: lack of flow, lack of salt, cover detection.
• Direct production in gr CI2/hour.
• Optional: Automatic control of pH (+/-), redox, CL2. conductivity and temperature.
• Safety with exceeded dosage time.
• Instructions, waiting times and dosing with patterns or at one point.
• Automatic or manual operation.
• Optional via cable or via Wifi with remote control and VistaPool.
• Electronic box.
• Titanium cell with transparent PVC support Ø 63 mm.

Technical characteristics.

Functioning

For a perfect operation on the Hidrolife salt electrolysis equipment, we indicate the operating principles of salt electrolysis

The salt necessary for the correct operation of the equipment must be added to the pool in a concentration of 4 - 6 Kg/m3 (5 - 6 lower than that of sea water).

The salt will be added to the water and chlorine (CI2) will be produced at the anode of the cell through the following reaction by electrolysis:

2NaCl+2H2O=2NaOH+H2+CI2 (salwater=soda+hydrogen+chlorine).

Chlorine is dissolved in water forming hypochlorous acid:

CI2+H2O=HOCI+HCI (chlorine+water=hypochlorous acid + hydrochloric acid)

Hypochlorous acid oxidizes the bacteria, as can also be seen, another product is generated, such as active oxygen (O2), to which an extra disinfectant power is added to the process, thus sterilizing the water:

2HOCI=2HCI+O2 (hypocorous acid=hydrochloric acid+oxygen)

Once the water is disinfected, the hydrochloric acid will react with the caustic soda in a neutralization reaction, giving salt and water again.

Hydrogen and oxygen react to form water:

NaOH+HCI=NaCl+H2O (soda+hydrochloric acid=salt+water)

All this operating process is a closed process in which there is no type of loss of any product, the addition of salt should be done only once when filling the pool.

They should only be carried out in small periodic replacements due to water losses during filter washing.

The chlorine generated will destroy the organic and pathogenic matter present in the water and will be transformed back into sodium chloride (common salt). All products break down, act and regenerate again. This explains why the salt concentration remains constant.

Measures
