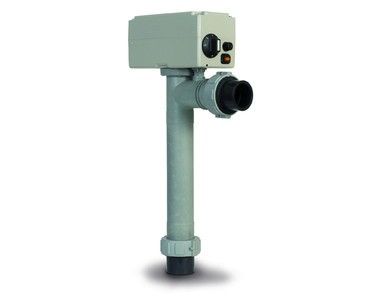

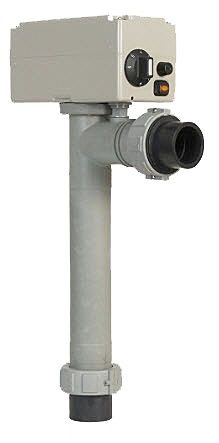

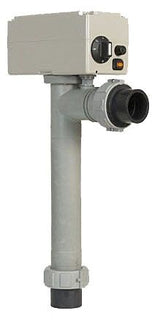

ZODIAC RE/LE 12 electric heater for heating indoor or outdoor private pools. Small powers, L mounting. Ideal for above ground pools.
Power First Premium está esgotado e será enviado assim que estiver de novo em estoque.
Tempo de trânsito 1 - 3 dias
Descrição
Descrição
Other models available:
This product has different models. You can select another model by clicking on the drop-down menu below the quantity:
| Reference | Model |
| W40LE03 | Zodiac RE/LE 3 electric heater - Ref. W40LE03 |
| W40LE06 | Zodiac RE/LE 6 electric heater - Ref. W40LE06 |
| W40LE09 | Zodiac RE/LE 9 electric heater - Ref. W40LE09 |
| W40LE12 | Zodiac RE/LE 12 electric heater - Ref. W40LE12 |
Electric heater for outdoor or indoor pools
- The easiest to use.
- Simple installation.
- Mechanical thermostat.
- Easy to adapt for above ground pools.
Technical characteristics
| RE/LE 3 W40LE03 |
RE/LE 6 |
RE/LE 9 |
RE/LE12 |
|
| Maximum volume m 3* | twenty | 40 | 60 | 80 |
| Resistor power (kW)** | 3 | 6 | 9 | 12 |
| Three-phase absorbed current 400 V (A) *** | 5 | 9 | 13 | 18 |
| Tri 400V power cable section (mm2)*** | 5x2.5 | 5x2.5 | 5x4 | 5x4 |
| Single-phase absorbed current 230 V (A)*** | 14 | 27 | 40 | - |
| 230V mono power cable section (mm2)**** | 3x4 | 3x6 | 3 x 10 | - |
| Power at +2ºC (kW) | 16 | twenty-one | ||
| Minimum flow (m3/h) | 5 | 5 | 5 | 5 |
| Maximum flow (m3/h) | 22 | 22 | 22 | 22 |
| hydraulic connection | PVC ø50 or ø63 | PVC ø50 or ø63 | PVC ø50 or ø63 | PVC ø50 or ø63 |
| Weight (kg) | 4 | 4 | 5 | 5 |
* Private outdoor pool, soft zone, with thermal blanket, from April 15 to October 15.
** Manufacturing tolerance of +/- 5%
*** RMS voltage tolerance from +6 to -10%
**** For a maximum length of 20 meters.
What type of pool?
- Outdoor, indoor and covered pools
- Adapted to the filtration of above-ground pools
- private pools
- Water volume from 20 to 80 m3 (private outdoor pool, soft zone, with thermal blanket, from April 15 to October 15).
Characteristic
- flow switch
- Mechanical regulation thermostat 16/40ºC.
- Safety thermostat.
- Power contactors.
- Supplied with wall support.
Dimensions (in mm)
 |
 |
