Hayward | SKU:
HPOW230
188,42 €
Preço unitário
/
Indisponível
Imposto incluído. Envio e descontos calculados na finalização da compra.

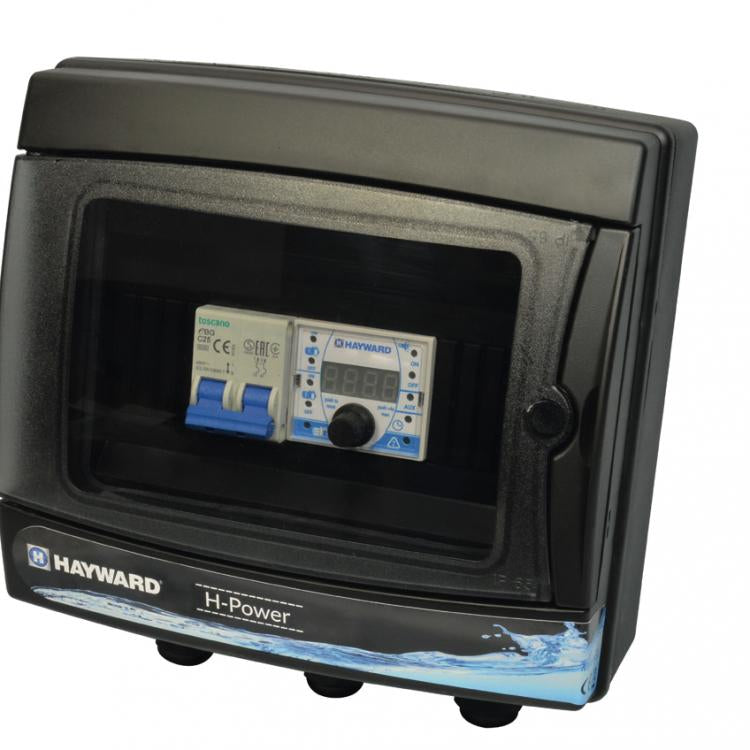

Electric unit for single-phase type pumps up to 3CV. Switches, connectors and timer are included in a single module. It has two independent timers, one for correct filtration and another for lighting. Automatically calibrates the nominal consumption of the filtration pump by detecting overconsumption, and includes overload protection.Includes start and hour counter.
copy of está esgotado e será enviado assim que estiver de novo em estoque.
Tempo de trânsito 1 - 3 dias
Descrição
Descrição
Electric unit for single-phase type pumps up to 3CV. Switches, connectors and timer are included in a single module. It has two independent timers, one for correct filtration and another for lighting. Automatically calibrates the nominal consumption of the filtration pump by detecting overconsumption, and includes overload protection.
Includes start and hour counter.
Technical characteristics:
| DESCRIPTION | |
| Feeding | 30V - 50/60Hz |
| pump outlet | 14A, 230VAC single-phase models |
| Signaling | Pump running, alarm, filter programs, auxiliary output and current time |
| Protections | motor overload |
| overload protection | 20% above the intensity measured in calibration |
| 4-digit LED display | Current time, settings and alarms |
| auxiliary relay | Voltage free contact 250V / 5A maximum |
| Maximum section of terminals | 4 mm² (power) /2.5 mm² (control) |
| IP/Temperature | IP65-10º...+55ºC |
| Information | Bluetooth interface (.B) + Radio remote control - External room temperature sensor |
